SMC Water Tank For Family and Commerce Water Storage
We supply good grade SMC water tanks for water storage in factories.
SMC water tank is also called SMC storage tank, FRP/GRP water tank, SMC panel tanks. It is a new type of tank. It is made of high qualified SMC panels. Sheet molding compound (SMC) is a kind of fiberglass reinforced plastic, which is a mixture of unsaturated polyester resin with impregnating augmentation material, filling material and glass fiber. SMC water tank is nontoxic, durable, lightweight, corrosion resistant and good-looking. Meanwhile, it’s easy to maintain and long-life. It is widely used in water storage in residential buildings, schools, hotel. SMC water tanks are used both for domestic water as well as medicine and health where needs good water supply quality.
Feature & advantage
- Excellent durability: The reasonable matching of materials assure that the SMC water tank is rustproof and durable.
- Water tightness: The gaskets between the panels guarantee the perfect water tightness.
- Rational capacity design: Various panels makes it possible to design the tanks according to our customers specific needs. (L-shape, U-shape, square-shape).
- Convenient installation: Standardized parts are used for on-site installation. You can install the SMC water tank under our guidance. And we also would like to send our staff to install if you like.
- Neat and nice appearance: The surface of the SMC water tank is smooth and clean. By completely block the sunlight, the bacteria or germ formation and growth are prevented.

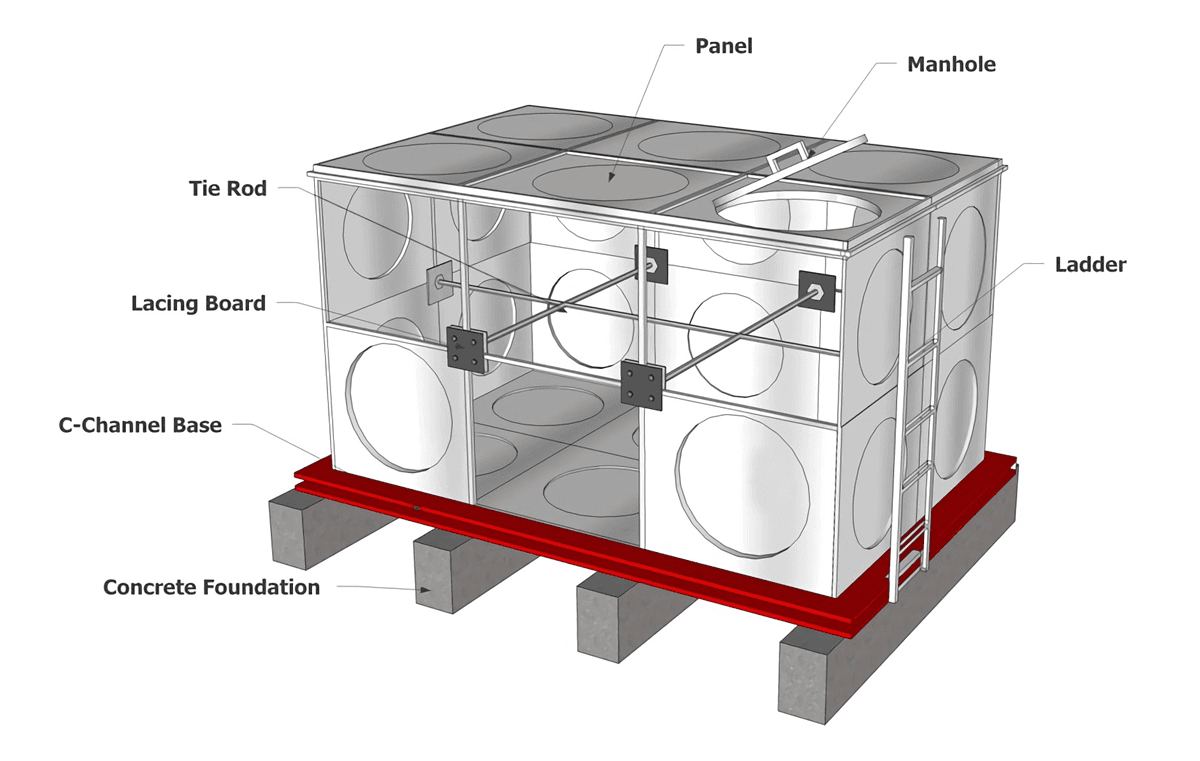

SMC water tank main components.
Raw materials and production line.

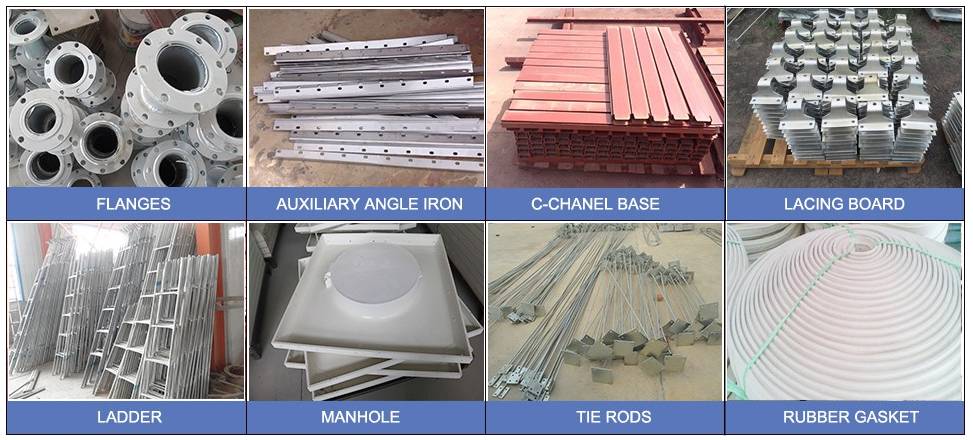

Qualified accessories for quick installation and durable life.

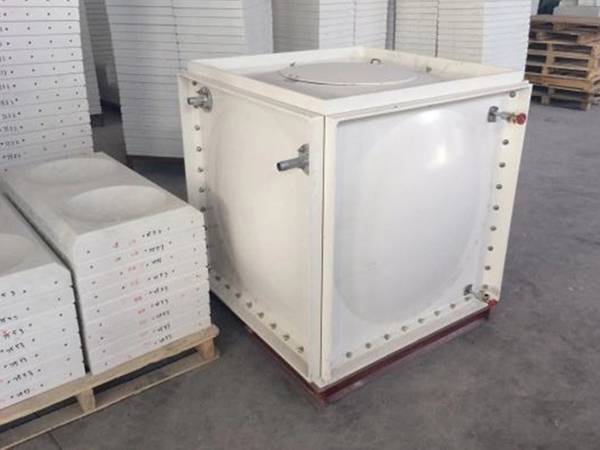

SMC water tank with neat and nice appearance.

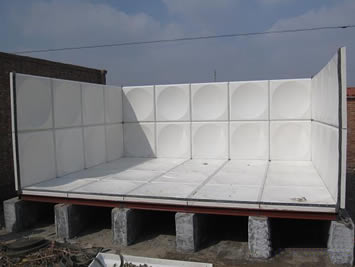

SMC water tank is easy and convenient to install.
Specification
The specifications of the SMC water tank were proven to be in conformity with National industrial standards of construction materials (JC658.1-1997).
Model | Volume (m3) | Specifications (mm) | Plate Thickness (mm) | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Length | Width | Height | Top Plate | Side Plate | Bottom Plate | |||||
Section 1 | Section 2 | Section 3 | Section 4 | |||||||
SMCT-01 | 1 | 1000 | 1000 | 1000 | 1.0 | 1.5 | ||||
SMCT-02 | 2 | 1000 | 2000 | 1000 | 1.0 | 1.5 | 1.5 | |||
SMCT-03 | 3 | 1000 | 3000 | 1000 | 1.0 | 1.5 | 1.5 | |||
SMCT-04 | 4 | 1000 | 2000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-06 | 6 | 1000 | 3000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-08 | 8 | 2000 | 3000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-12 | 12 | 2000 | 2000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
Show More +Fewer - | ||||||||||
SMCT-16 | 16 | 2000 | 3000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-18 | 18 | 3000 | 4000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-20 | 20 | 2000 | 3000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-24 | 24 | 3000 | 5000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-30 | 30 | 3000 | 4000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-36 | 36 | 3000 | 5000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-40 | 40 | 4000 | 6000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-45 | 45 | 3000 | 5000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 2.0 | |
SMCT-50 | 50 | 5000 | 5000 | 2000 | 1.0 | 2.0 | 1.5 | 2.0 | ||
SMCT-60 | 60 | 4000 | 5000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-75 | 75 | 5000 | 5000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-90 | 90 | 5000 | 5000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-105 | 105 | 5000 | 7000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-120 | 120 | 5000 | 8000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-135 | 135 | 5000 | 9000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-150 | 150 | 5000 | 10000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-180 | 180 | 6000 | 10000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-216 | 216 | 6000 | 12000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-270 | 270 | 6000 | 15000 | 3000 | 1.0 | 2.5 | 2.0 | 1.5 | 3.0 | |
SMCT-312 | 312 | 6000 | 13000 | 4000 | 1.0 | 3.0 | 2.5 | 2.0 | 1.5 | 3.5 |
SMCT-408 | 408 | 6000 | 17000 | 4000 | 1.0 | 3.0 | 2.5 | 2.0 | 1.5 | 3.5 |
SMCT-504 | 504 | 7000 | 18000 | 4000 | 1.0 | 3.0 | 2.5 | 2.0 | 1.5 | 3.5 |
Panel size: 1000 mm × 1000 mm, 1000 mm × 500 mm, 500 mm × 500 mm.
Panel thickness: 5 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm (5 mm panel is used as cover board specially).
Tensile strength | ≥ 70 MPa |
---|---|
Bending strength | ≥ 100 MPa |
Flexural modulus of elasticity | ≥ 5900 MPa |
Barcol hardness | ≥ 60 |
Water absorption rate | ≤ 1.0‰ |
Glass fiber content | ≥ 25 |
Package & delivery
- Package: Steel frame or plywood box package with steel belt. We would try our best to save space and protect the panel from damage.
- Delivery: usually in 7 to 10 days after shipment; for non-standard and customized SMC water tanks, the delivery would be in 15 to 30 days.

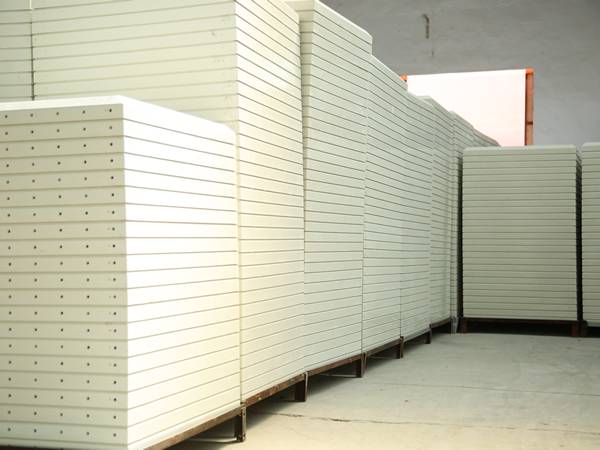

Pallet package.

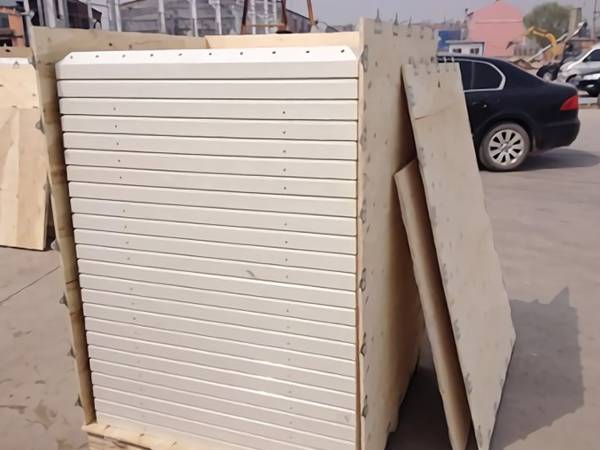

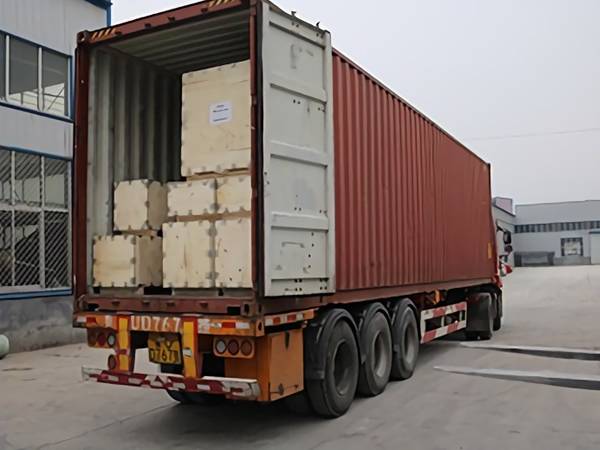

Wooden case package.

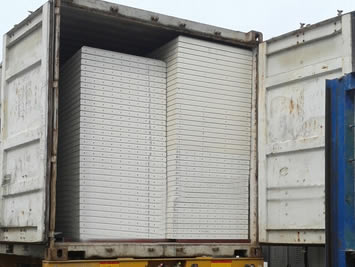

We have our own forwarder to save your money and time.
Wooden case package protect goods from breakage.
SMC water tank application
SMC water tanks are widely used in commercial, residential, industrial or agricultural applications for cold or hot water storage, detailed applications are as follows:
- Fire protection water storage.
- Drinking water storage.
- School water supply.
- Irrigation water storage.
- Water circulation system.
- Water treatment system.

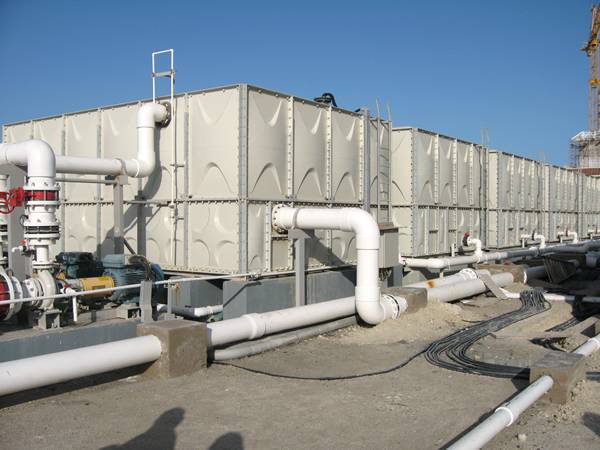

Drinking water storage in the hotel.

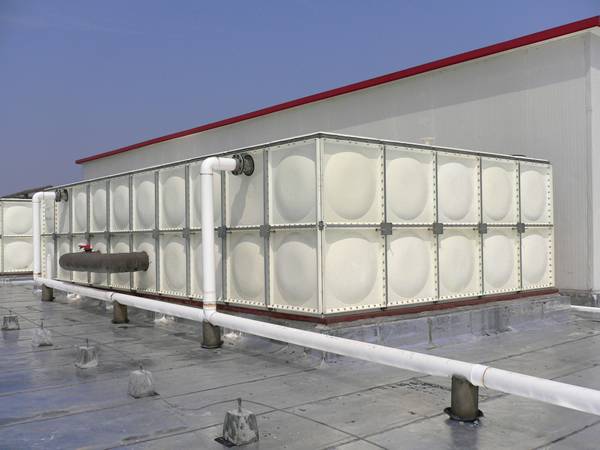

FRP water tank for water treatment.

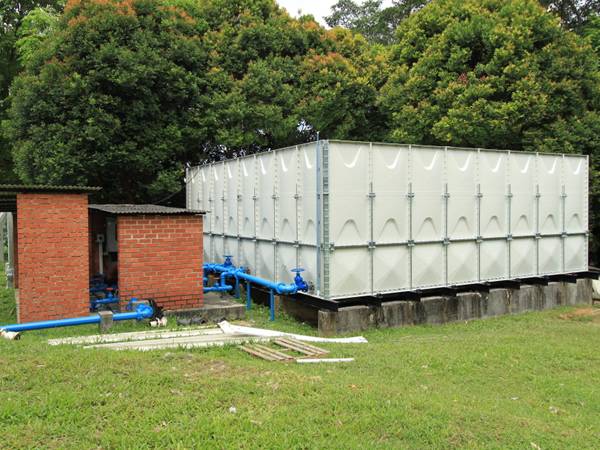

SMC water tank for irrigation.

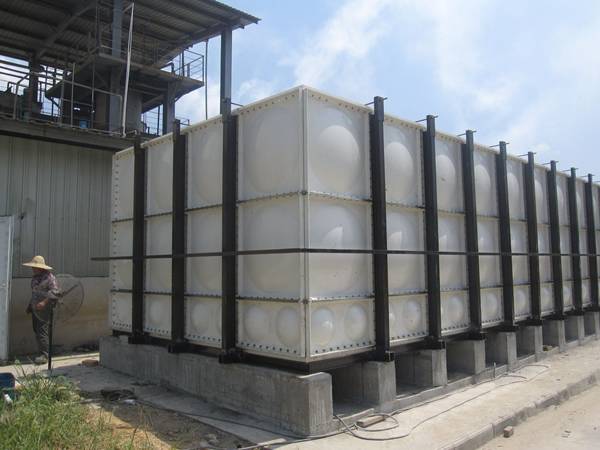

Fire protection water storage..
